04 - Cache Architecture

Overview

OpenAlgo implements a multi-layer caching system to achieve high performance with 100,000+ trading symbols. The caching architecture minimizes database queries, reduces latency, and ensures fast API responses during high-frequency trading operations.

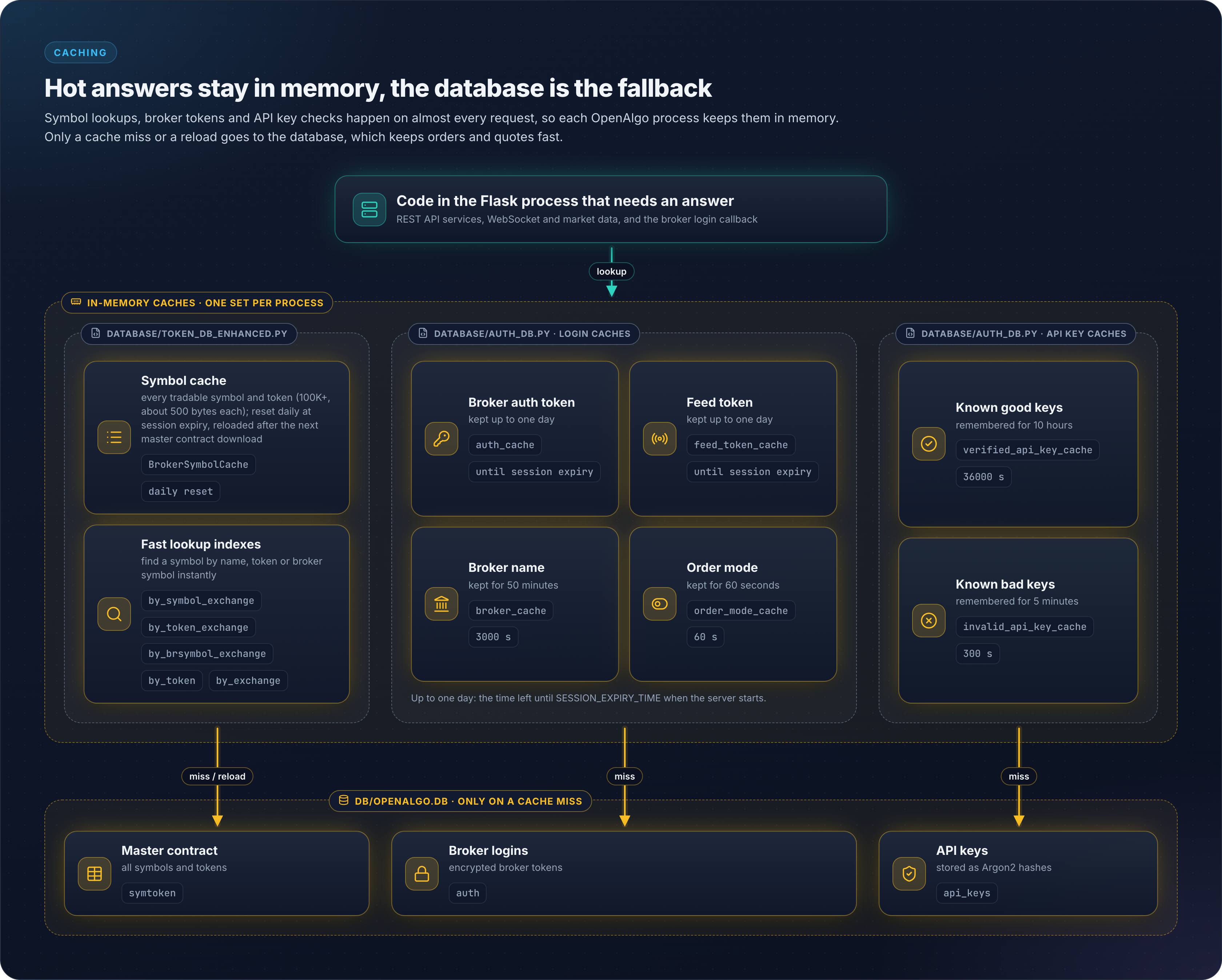

Cache Architecture Diagram

┌──────────────────────────────────────────────────────────────────────────────┐
│                          Cache Architecture                                   │
└──────────────────────────────────────────────────────────────────────────────┘

┌─────────────────────────────────────────────────────────────────────────────┐
│                           Application Layer                                  │
│                                                                              │
│  ┌─────────────┐  ┌─────────────┐  ┌─────────────┐  ┌─────────────────────┐ │
│  │  REST API   │  │  WebSocket  │  │  Services   │  │  Broker Callbacks   │ │
│  └──────┬──────┘  └──────┬──────┘  └──────┬──────┘  └──────────┬──────────┘ │
│         │                │                │                     │            │
│         └────────────────┴────────────────┴─────────────────────┘            │
│                                   │                                          │
└───────────────────────────────────┼──────────────────────────────────────────┘
                                    ▼
┌──────────────────────────────────────────────────────────────────────────────┐
│                         In-Memory Cache Layer                                 │
│                                                                               │
│  ┌──────────────────────┐  ┌──────────────────────┐  ┌────────────────────┐  │
│  │   Symbol Cache       │  │    Auth Caches       │  │   API Key Caches   │  │
│  │   (BrokerSymbolCache)│  │                      │  │                    │  │
│  │                      │  │  ┌────────────────┐  │  │  ┌──────────────┐  │  │
│  │  • 100K+ symbols     │  │  │  auth_cache    │  │  │  │  verified_   │  │  │
│  │  • Multi-index maps  │  │  │  TTL: session  │  │  │  │  api_key     │  │  │
│  │  • O(1) lookups      │  │  └────────────────┘  │  │  │  TTL: 10hr   │  │  │
│  │  • ~50MB memory      │  │                      │  │  └──────────────┘  │  │
│  │                      │  │  ┌────────────────┐  │  │                    │  │
│  │  Indexes:            │  │  │ feed_token_    │  │  │  ┌──────────────┐  │  │
│  │  • by_symbol_exchange│  │  │ cache          │  │  │  │  invalid_    │  │  │
│  │  • by_token_exchange │  │  │ TTL: session   │  │  │  │  api_key     │  │  │
│  │  • by_brsymbol       │  │  └────────────────┘  │  │  │  TTL: 5min   │  │  │
│  │  • by_token          │  │                      │  │  └──────────────┘  │  │
│  │                      │  │  ┌────────────────┐  │  │                    │  │
│  │                      │  │  │ broker_cache   │  │  │                    │  │
│  │                      │  │  │ TTL: 50min     │  │  │                    │  │
│  │                      │  │  └────────────────┘  │  │                    │  │
│  └──────────────────────┘  └──────────────────────┘  └────────────────────┘  │
│                                                                               │
└───────────────────────────────────────────────────────────────────────────────┘
                                    │
                                    │ Cache Miss
                                    ▼
┌──────────────────────────────────────────────────────────────────────────────┐
│                          Database Layer                                       │
│                                                                               │
│  ┌────────────────┐  ┌────────────────┐  ┌────────────────┐                  │
│  │   symtoken     │  │     auth       │  │   api_keys     │                  │
│  │   (symbols)    │  │   (tokens)     │  │   (hashes)     │                  │
│  └────────────────┘  └────────────────┘  └────────────────┘                  │
│                                                                               │
└──────────────────────────────────────────────────────────────────────────────┘

Cache Types

1. Symbol Cache (BrokerSymbolCache)

High-performance in-memory cache for 100,000+ trading symbols.

Location: database/token_db_enhanced.py

Features:

• O(1) lookups via multiple indexes

• ~50MB memory for 100K symbols

• Session-based TTL (resets at 3:00 AM IST)

• Cache statistics tracking

@dataclass
class SymbolData:
    """Lightweight symbol data structure for in-memory storage"""
    symbol: str          # OpenAlgo symbol (NSE:SBIN-EQ)
    brsymbol: str        # Broker symbol (SBIN)
    name: str            # Company name
    exchange: str        # Exchange (NSE, NFO, BSE)
    brexchange: str      # Broker exchange code
    token: str           # Instrument token
    expiry: str          # Expiry date (for F&O)
    strike: float        # Strike price (for options)
    lotsize: int         # Lot size
    instrumenttype: str  # EQ, FUT, CE, PE
    tick_size: float     # Price tick size

class BrokerSymbolCache:
    def __init__(self):
        # Primary storage
        self.symbols: Dict[str, SymbolData] = {}

        # Multi-index maps for O(1) lookups
        self.by_symbol_exchange: Dict[Tuple[str, str], SymbolData] = {}
        self.by_token_exchange: Dict[Tuple[str, str], SymbolData] = {}
        self.by_brsymbol_exchange: Dict[Tuple[str, str], SymbolData] = {}
        self.by_token: Dict[str, SymbolData] = {}

        # Statistics
        self.stats = CacheStats()

Cache Population:

def load_all_symbols(self, broker: str) -> bool:
    """Load all symbols for the active broker into memory"""
    symbols = SymToken.query.all()  # One-time DB query

    for sym in symbols:
        symbol_data = SymbolData(...)

        # Build indexes for O(1) lookups
        self.symbols[sym.token] = symbol_data
        self.by_symbol_exchange[(sym.symbol, sym.exchange)] = symbol_data
        self.by_token_exchange[(sym.token, sym.exchange)] = symbol_data
        self.by_brsymbol_exchange[(sym.brsymbol, sym.exchange)] = symbol_data
        self.by_token[sym.token] = symbol_data

    self.stats.total_symbols = len(symbols)
    self.stats.memory_usage_mb = len(self.symbols) * 500 / (1024 * 1024)

Lookup Example:

def get_token(self, symbol: str, exchange: str) -> Optional[str]:
    """Get token for symbol and exchange - O(1) lookup"""
    self.stats.hits += 1
    key = (symbol, exchange)
    if key in self.by_symbol_exchange:
        return self.by_symbol_exchange[key].token
    self.stats.misses += 1
    return None

2. Authentication Caches

Location: database/auth_db.py

from cachetools import TTLCache

# Auth token cache - TTL based on session expiry
auth_cache = TTLCache(maxsize=1024, ttl=get_session_based_cache_ttl())

# Feed token cache - same TTL as auth
feed_token_cache = TTLCache(maxsize=1024, ttl=get_session_based_cache_ttl())

# Broker name cache - 50 minute TTL
broker_cache = TTLCache(maxsize=1024, ttl=3000)

Session-Based TTL Calculation:

def get_session_based_cache_ttl():
    """Calculate cache TTL based on daily session expiry time"""
    expiry_time = os.getenv('SESSION_EXPIRY_TIME', '03:00')
    hour, minute = map(int, expiry_time.split(':'))

    now_ist = datetime.now(pytz.timezone('Asia/Kolkata'))
    target_time = now_ist.replace(hour=hour, minute=minute)

    if now_ist >= target_time:
        target_time += timedelta(days=1)

    time_until_expiry = (target_time - now_ist).total_seconds()
    return max(300, min(time_until_expiry, 24 * 3600))  # 5min - 24hr bounds

3. API Key Caches

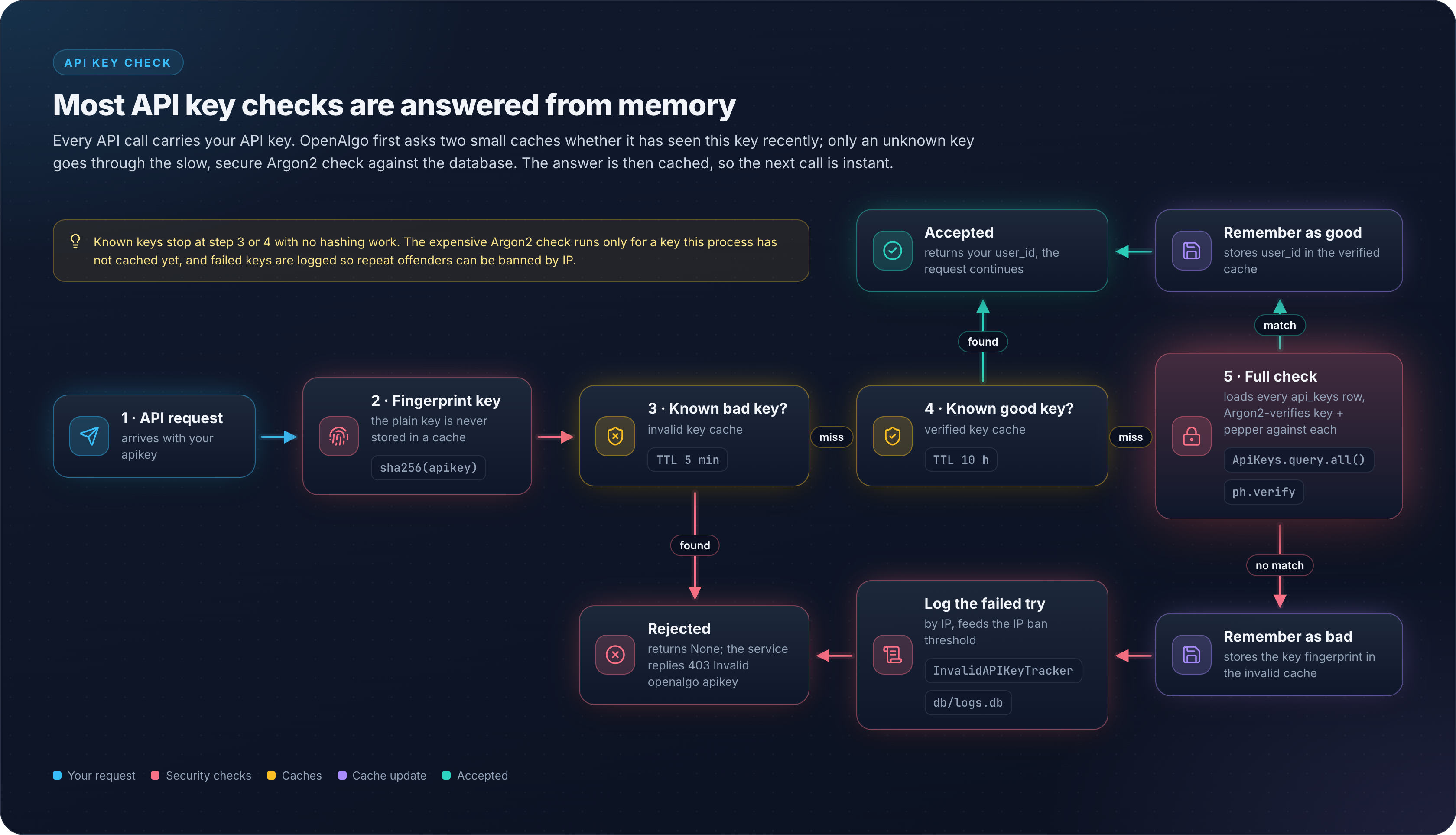

Three-Level API Key Verification:

┌─────────────────────────────────────────────────────────────────┐
│                    API Key Verification Flow                     │
└─────────────────────────────────────────────────────────────────┘

API Request with Key
        │
        ▼
┌─────────────────┐     Found      ┌─────────────────┐
│ invalid_api_key │───────────────►│ REJECT (Fast)   │
│ cache (5min)    │                │ Return 401      │
└────────┬────────┘                └─────────────────┘
         │ Not Found
         ▼
┌─────────────────┐     Found      ┌─────────────────┐
│ verified_api_   │───────────────►│ ACCEPT (Fast)   │
│ key cache (10hr)│                │ Return user_id  │
└────────┬────────┘                └─────────────────┘
         │ Not Found
         ▼
┌─────────────────┐                ┌─────────────────┐
│ Database Query  │───────────────►│ Argon2 Verify   │
│ (Expensive)     │                │ (Slow)          │
└─────────────────┘                └────────┬────────┘
                                            │
              ┌─────────────────────────────┴─────────────────────────────┐
              │                                                           │
              ▼ Valid                                              Invalid ▼
    ┌─────────────────┐                                      ┌─────────────────┐
    │ Add to verified │                                      │ Add to invalid  │
    │ cache (10hr)    │                                      │ cache (5min)    │
    └─────────────────┘                                      └─────────────────┘

Implementation:

# Valid API keys - long TTL (10 hours)
# Only stores user_id, not the key itself
verified_api_key_cache = TTLCache(maxsize=1024, ttl=36000)

# Invalid API keys - short TTL (5 minutes)
# Prevents repeated expensive Argon2 verification
invalid_api_key_cache = TTLCache(maxsize=512, ttl=300)

def verify_api_key(api_key: str) -> Optional[str]:
    """Verify API key with 3-level caching"""
    key_hash = hashlib.sha256(api_key.encode()).hexdigest()

    # Level 1: Check invalid cache (fast rejection)
    if key_hash in invalid_api_key_cache:
        return None

    # Level 2: Check valid cache (fast acceptance)
    if key_hash in verified_api_key_cache:
        return verified_api_key_cache[key_hash]  # Returns user_id

    # Level 3: Database verification (expensive)
    user_id = db_verify_api_key(api_key)  # Argon2 verification

    if user_id:
        verified_api_key_cache[key_hash] = user_id
    else:
        invalid_api_key_cache[key_hash] = True

    return user_id

Cache Lifecycle

1. Startup Restoration

On application startup, caches are restored from database:

# database/cache_restoration.py
def restore_all_caches() -> dict:
    """Restore all caches from database on application startup"""
    result = {
        'symbol_cache': restore_symbol_cache(),
        'auth_cache': restore_auth_cache()
    }
    return result

def restore_auth_cache():
    """Load non-revoked auth tokens into memory"""
    auth_records = Auth.query.filter_by(is_revoked=False).all()

    for auth_record in auth_records:
        cache_key = f"auth-{auth_record.name}"
        auth_cache[cache_key] = auth_record

        if auth_record.feed_token:
            feed_token_cache[f"feed-{auth_record.name}"] = auth_record

def restore_symbol_cache():
    """Load symbols if active broker session exists"""
    auth_record = Auth.query.filter_by(is_revoked=False).first()
    if auth_record:
        cache = get_cache()
        cache.load_all_symbols(auth_record.broker)

2. Login Population

After successful broker authentication:

# utils/auth_utils.py
def async_master_contract_download(broker):
    """Download master contract and populate symbol cache"""
    # Download from broker
    master_contract_module.master_contract_download()

    # Load symbols into memory cache
    from database.master_contract_cache_hook import hook_into_master_contract_download
    hook_into_master_contract_download(broker)

Cache Hook:

# database/master_contract_cache_hook.py
def load_symbols_to_cache(broker: str) -> bool:
    """Load all symbols into memory cache after master contract download"""
    from database.token_db_enhanced import load_cache_for_broker, get_cache_stats

    success = load_cache_for_broker(broker)

    if success:
        stats = get_cache_stats()
        socketio.emit('cache_loaded', {
            'status': 'success',
            'broker': broker,
            'total_symbols': stats['total_symbols'],
            'memory_usage_mb': stats['stats']['memory_usage_mb']
        })
    return success

3. Logout Cleanup

On logout, caches are cleared:

# blueprints/auth.py
def logout():
    username = session['user']

    # Clear auth caches
    del auth_cache[f"auth-{username}"]
    del feed_token_cache[f"feed-{username}"]

    # Clear symbol cache
    from database.master_contract_cache_hook import clear_cache_on_logout
    clear_cache_on_logout()

Cache Statistics & Health

Statistics Tracking

@dataclass
class CacheStats:
    hits: int = 0           # Cache hits
    misses: int = 0         # Cache misses
    db_queries: int = 0     # Direct DB queries
    bulk_queries: int = 0   # Bulk DB queries
    cache_loads: int = 0    # Full cache loads
    last_loaded: datetime   # Last load timestamp
    total_symbols: int = 0  # Total cached symbols
    memory_usage_mb: float  # Memory consumption

    def get_hit_rate(self) -> float:
        total = self.hits + self.misses
        return (self.hits / total * 100) if total > 0 else 0.0

Health Monitoring

# database/master_contract_cache_hook.py
def get_cache_health() -> dict:
    """Get cache health information for monitoring"""
    stats = get_cache_stats()
    hit_rate = float(stats['stats']['hit_rate'].rstrip('%'))

    # Calculate health score
    health_score = 100
    if not stats['cache_loaded']:
        health_score = 0
    elif not stats['cache_valid']:
        health_score = 50
    elif hit_rate < 90:
        health_score = 75

    return {
        'health_score': health_score,
        'status': 'healthy' if health_score >= 75 else 'degraded',
        'cache_loaded': stats['cache_loaded'],
        'cache_valid': stats['cache_valid'],
        'hit_rate': stats['stats']['hit_rate'],
        'total_symbols': stats['total_symbols'],
        'memory_usage_mb': stats['stats']['memory_usage_mb'],
        'recommendations': _get_health_recommendations(health_score, stats)
    }

Cache Configuration

Environment Variables

# Session expiry time (cache reset time)
SESSION_EXPIRY_TIME=03:00

# Cache sizes (in code, not configurable via env)
# auth_cache: maxsize=1024
# feed_token_cache: maxsize=1024
# broker_cache: maxsize=1024
# verified_api_key_cache: maxsize=1024
# invalid_api_key_cache: maxsize=512

TTL Summary

Cache	TTL	Purpose
auth_cache	Until session expiry	Auth token storage
feed_token_cache	Until session expiry	WebSocket feed tokens
broker_cache	50 minutes	Broker name lookups
verified_api_key_cache	10 hours	Valid API key user IDs
invalid_api_key_cache	5 minutes	Failed API key attempts
symbol_cache	Until session expiry	Trading symbols

Performance Characteristics

Memory Usage

Component	Size	Memory
Symbol Cache (100K symbols)	~500 bytes/symbol	~50 MB
Auth Cache (1024 entries)	~1 KB/entry	~1 MB
API Key Cache (1024 entries)	~100 bytes/entry	~100 KB
Total		~52 MB

Lookup Performance

Operation	Complexity	Latency
Symbol lookup (cached)	O(1)	<1 ms
Auth token lookup (cached)	O(1)	<1 ms
API key verification (cached)	O(1)	<1 ms
API key verification (DB)	O(1) + Argon2	~100 ms
Symbol lookup (DB fallback)	O(log n)	~5 ms

Cache Invalidation

Automatic Invalidation

1. TTL Expiry - Caches auto-expire based on TTL

2. Session Expiry - Symbol and auth caches reset at 3:00 AM IST

3. Logout - All user-specific caches cleared

Manual Invalidation

# Clear symbol cache
from database.token_db_enhanced import clear_cache
clear_cache()

# Clear auth cache for user
del auth_cache[f"auth-{username}"]
del feed_token_cache[f"feed-{username}"]

# Invalidate API key cache on regeneration
# (Handled automatically by clearing verified_api_key_cache)

Key Files Reference

File	Purpose
database/token_db_enhanced.py	Symbol cache implementation
database/auth_db.py	Auth and API key caches
database/cache_restoration.py	Startup cache restoration
database/master_contract_cache_hook.py	Cache lifecycle hooks

Best Practices

1. Always check cache first - Use cache methods before DB queries

2. Invalidate on mutation - Clear relevant cache entries on data changes

3. Monitor hit rates - Investigate if hit rate drops below 90%

4. Respect TTLs - Don't manually extend cache entries

5. Handle cache misses gracefully - Fall back to DB on miss
