# 09 - REST API Documentation

### Overview

OpenAlgo provides a comprehensive REST API built with Flask-RESTX at `/api/v1/`. The API enables trading operations, market data retrieval, and account management across 29 Indian brokers through a unified interface.

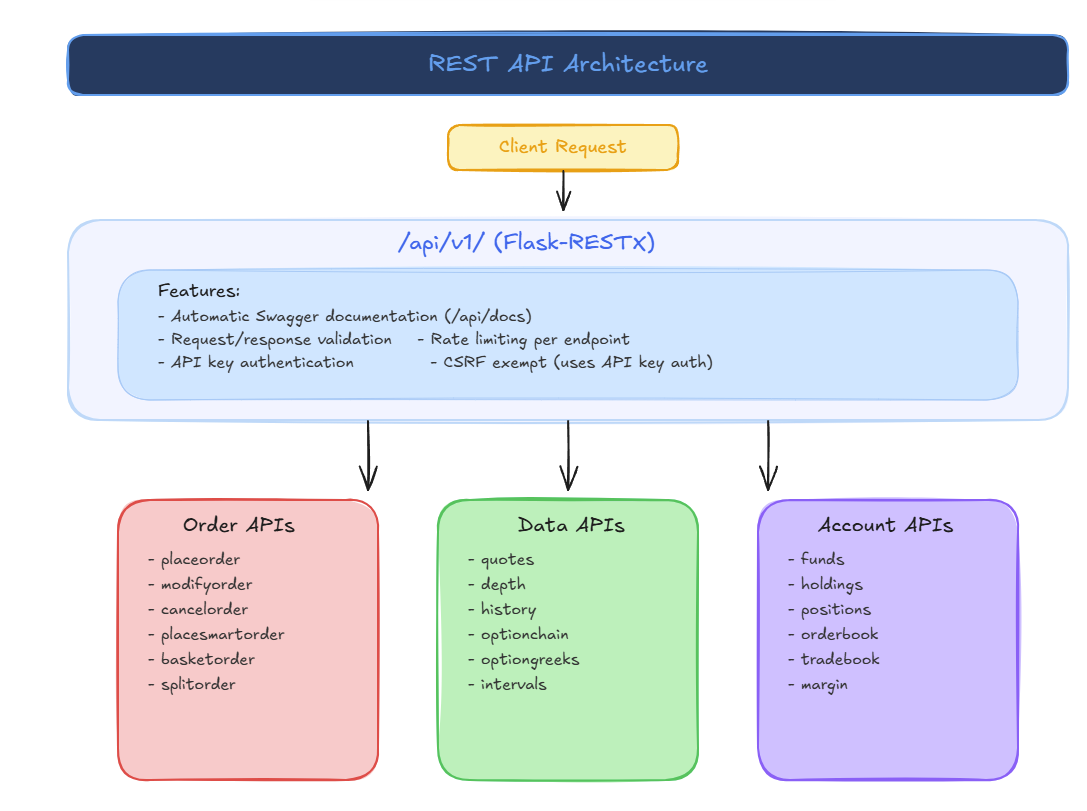

### Architecture Diagram

<figure><img src="/files/KHdgmye0ib2DnaMc6Ifl" alt=""><figcaption></figcaption></figure>

### API Categories

#### Order Management

| Endpoint                    | Method | Rate Limit   | Description                                |
| --------------------------- | ------ | ------------ | ------------------------------------------ |
| `/api/v1/placeorder`        | POST   | ORDER\_RATE  | Place single order                         |
| `/api/v1/placesmartorder`   | POST   | SMART\_ORDER | Place smart order (position sizing)        |
| `/api/v1/modifyorder`       | POST   | ORDER\_RATE  | Modify pending order                       |
| `/api/v1/cancelorder`       | POST   | ORDER\_RATE  | Cancel single order                        |
| `/api/v1/cancelallorder`    | POST   | API\_RATE    | Cancel all orders                          |
| `/api/v1/basketorder`       | POST   | ORDER\_RATE  | Place multiple orders (batched concurrent) |
| `/api/v1/splitorder`        | POST   | API\_RATE    | Split large order                          |
| `/api/v1/closeposition`     | POST   | ORDER\_RATE  | Close specific position                    |
| `/api/v1/optionsorder`      | POST   | ORDER\_RATE  | Place options order                        |
| `/api/v1/optionsmultiorder` | POST   | ORDER\_RATE  | Place multi-leg options order              |
| `/api/v1/orderstatus`       | POST   | API\_RATE    | Get order status                           |
| `/api/v1/openposition`      | POST   | API\_RATE    | Get open positions                         |

#### Market Data

| Endpoint                    | Method | Rate Limit | Description            |
| --------------------------- | ------ | ---------- | ---------------------- |
| `/api/v1/quotes`            | POST   | API\_RATE  | Single symbol quote    |
| `/api/v1/multiquotes`       | POST   | API\_RATE  | Multiple symbols quote |
| `/api/v1/depth`             | POST   | API\_RATE  | Market depth (L5)      |
| `/api/v1/history`           | POST   | API\_RATE  | Historical OHLCV       |
| `/api/v1/intervals`         | POST   | API\_RATE  | Supported intervals    |
| `/api/v1/optionchain`       | POST   | API\_RATE  | Options chain data     |
| `/api/v1/optiongreeks`      | POST   | API\_RATE  | Single option greeks   |
| `/api/v1/multioptiongreeks` | POST   | API\_RATE  | Multiple option greeks |
| `/api/v1/optionsymbol`      | POST   | API\_RATE  | Get option symbol      |
| `/api/v1/expiry`            | POST   | API\_RATE  | Expiry dates           |
| `/api/v1/syntheticfuture`   | POST   | API\_RATE  | Synthetic future price |

#### Account Information

| Endpoint            | Method | Rate Limit | Description        |
| ------------------- | ------ | ---------- | ------------------ |
| `/api/v1/funds`     | POST   | API\_RATE  | Account balance    |
| `/api/v1/holdings`  | POST   | API\_RATE  | Portfolio holdings |
| `/api/v1/positions` | POST   | API\_RATE  | Open positions     |
| `/api/v1/orderbook` | POST   | API\_RATE  | Order history      |
| `/api/v1/tradebook` | POST   | API\_RATE  | Trade history      |
| `/api/v1/margin`    | POST   | API\_RATE  | Margin calculation |

#### Symbol & Search

| Endpoint              | Method | Rate Limit | Description     |
| --------------------- | ------ | ---------- | --------------- |
| `/api/v1/symbol`      | POST   | API\_RATE  | Symbol lookup   |
| `/api/v1/search`      | POST   | API\_RATE  | Symbol search   |
| `/api/v1/instruments` | GET    | API\_RATE  | All instruments |

#### Utilities

| Endpoint                 | Method | Rate Limit | Description                  |
| ------------------------ | ------ | ---------- | ---------------------------- |
| `/api/v1/ping`           | POST   | API\_RATE  | Connection test              |
| `/api/v1/markettimings`  | POST   | API\_RATE  | Market hours                 |
| `/api/v1/marketholidays` | POST   | API\_RATE  | Holiday calendar             |
| `/api/v1/pnlsymbols`     | POST   | API\_RATE  | P\&L breakdown by symbol     |
| `/api/v1/chart`          | POST   | API\_RATE  | Chart data                   |
| `/api/v1/ticker`         | GET    | API\_RATE  | WebSocket ticker info        |
| `/api/v1/telegram`       | POST   | API\_RATE  | Telegram bot integration     |
| `/api/v1/analyzer`       | POST   | API\_RATE  | Sandbox/analyzer mode toggle |

### Authentication

All API endpoints require API key authentication:

```python
# Method 1: In request body (recommended)
{
    "apikey": "your_64_char_api_key",
    "symbol": "SBIN",
    "exchange": "NSE"
}

# Method 2: X-API-KEY header (supported on some endpoints)
headers = {
    "X-API-KEY": "your_64_char_api_key"
}
```

**Note:** Bearer token authentication is NOT supported. Always use either the `apikey` field in the request body or the `X-API-KEY` header.

### Request/Response Format

#### Standard Request

```json
{
    "apikey": "your_api_key",
    "symbol": "SBIN",
    "exchange": "NSE",
    "action": "BUY",
    "quantity": 1,
    "product": "MIS",
    "pricetype": "MARKET"
}
```

#### Standard Response

```json
{
    "status": "success",
    "data": {
        "orderid": "123456789"
    }
}
```

#### Error Response

```json
{
    "status": "error",
    "message": "Invalid symbol"
}
```

### Place Order API

**Endpoint:** `POST /api/v1/placeorder`

#### Request Fields

| Field                | Type    | Required | Description             |
| -------------------- | ------- | -------- | ----------------------- |
| `apikey`             | string  | Yes      | API key                 |
| `symbol`             | string  | Yes      | Trading symbol          |
| `exchange`           | string  | Yes      | NSE, BSE, NFO, etc.     |
| `action`             | string  | Yes      | BUY or SELL             |
| `quantity`           | integer | Yes      | Order quantity          |
| `product`            | string  | Yes      | MIS, CNC, NRML          |
| `pricetype`          | string  | Yes      | MARKET, LIMIT, SL, SL-M |
| `price`              | float   | No       | Limit price             |
| `trigger_price`      | float   | No       | Trigger for SL orders   |
| `disclosed_quantity` | integer | No       | Disclosed quantity      |

#### Example

```python
import requests

response = requests.post(
    "http://localhost:5000/api/v1/placeorder",
    json={
        "apikey": "your_api_key",
        "symbol": "SBIN",
        "exchange": "NSE",
        "action": "BUY",
        "quantity": 1,
        "product": "MIS",
        "pricetype": "MARKET"
    }
)

print(response.json())
# {"status": "success", "data": {"orderid": "123456"}}
```

### Smart Order API

**Endpoint:** `POST /api/v1/placesmartorder`

Intelligent order with position sizing and management.

#### Additional Fields

| Field           | Type    | Description                |
| --------------- | ------- | -------------------------- |
| `position_size` | integer | Target position size       |
| `strategy`      | string  | Strategy name for tracking |

#### Position Sizing Logic

```
Current Position: +10
position_size: 0    → SELL 10 (close)
position_size: 5    → SELL 5 (reduce)
position_size: -5   → SELL 15 (reverse)
position_size: 15   → BUY 5 (add)
```

### Quotes API

**Endpoint:** `POST /api/v1/quotes`

#### Response

```json
{
    "status": "success",
    "data": {
        "symbol": "SBIN",
        "exchange": "NSE",
        "ltp": 625.50,
        "open": 620.00,
        "high": 628.00,
        "low": 618.50,
        "close": 622.30,
        "volume": 12500000,
        "oi": 0
    }
}
```

### History API

**Endpoint:** `POST /api/v1/history`

#### Request

```json
{
    "apikey": "your_api_key",
    "symbol": "SBIN",
    "exchange": "NSE",
    "interval": "1day",
    "start_date": "2024-01-01",
    "end_date": "2024-01-31"
}
```

#### Supported Intervals

| Interval   | Description       |
| ---------- | ----------------- |
| `1minute`  | 1-minute candles  |
| `3minute`  | 3-minute candles  |
| `5minute`  | 5-minute candles  |
| `10minute` | 10-minute candles |
| `15minute` | 15-minute candles |
| `30minute` | 30-minute candles |
| `60minute` | 1-hour candles    |
| `1day`     | Daily candles     |
| `1week`    | Weekly candles    |
| `1month`   | Monthly candles   |

### Option Chain API

**Endpoint:** `POST /api/v1/optionchain`

#### Request

```json
{
    "apikey": "your_api_key",
    "symbol": "NIFTY",
    "exchange": "NFO",
    "expiry": "2024-01-25"
}
```

#### Response Structure

```json
{
    "status": "success",
    "data": {
        "calls": [...],
        "puts": [...],
        "spot_price": 21500.50,
        "expiry": "2024-01-25"
    }
}
```

### Swagger Documentation

Access interactive API documentation at:

```
http://localhost:5000/api/docs
```

Features:

* Try endpoints directly
* View request/response schemas
* Download OpenAPI spec

### File Structure

```
restx_api/
├── __init__.py              # API blueprint registration
├── schemas.py               # Order schemas
├── data_schemas.py          # Data schemas
├── account_schema.py        # Account schemas
├── place_order.py           # Place order endpoint
├── place_smart_order.py     # Smart order endpoint
├── modify_order.py          # Modify order
├── cancel_order.py          # Cancel order
├── cancel_all_order.py      # Cancel all orders
├── basket_order.py          # Basket orders
├── split_order.py           # Split orders
├── close_position.py        # Close position
├── orderstatus.py           # Order status
├── openposition.py          # Open positions
├── quotes.py                # Single quote
├── multiquotes.py           # Multiple quotes
├── depth.py                 # Market depth
├── history.py               # Historical data
├── option_chain.py          # Option chain
├── option_greeks.py         # Option greeks
├── multi_option_greeks.py   # Multi option greeks
├── option_symbol.py         # Option symbol lookup
├── expiry.py                # Expiry dates
├── synthetic_future.py      # Synthetic future
├── funds.py                 # Account funds
├── holdings.py              # Holdings
├── positionbook.py          # Positions
├── orderbook.py             # Order book
├── tradebook.py             # Trade book
├── margin.py                # Margin calculation
├── symbol.py                # Symbol lookup
├── search.py                # Symbol search
├── instruments.py           # All instruments
├── intervals.py             # Supported intervals
├── ping.py                  # Connection test
├── market_timings.py        # Market hours
├── market_holidays.py       # Holidays
└── chart_api.py             # Chart preferences
```

### Key Files Reference

| File                    | Purpose                           |
| ----------------------- | --------------------------------- |
| `restx_api/__init__.py` | API blueprint and namespace setup |
| `restx_api/schemas.py`  | Request/response models           |
| `blueprints/api_v1.py`  | API registration                  |
| `collections/`          | Bruno/Postman collections         |


---
