# 06 - WebSockets Architecture

### Overview

OpenAlgo implements a unified WebSocket proxy server that handles real-time market data streaming from 29 brokers. The architecture uses ZeroMQ for high-performance internal messaging and supports connection pooling for handling thousands of symbol subscriptions.

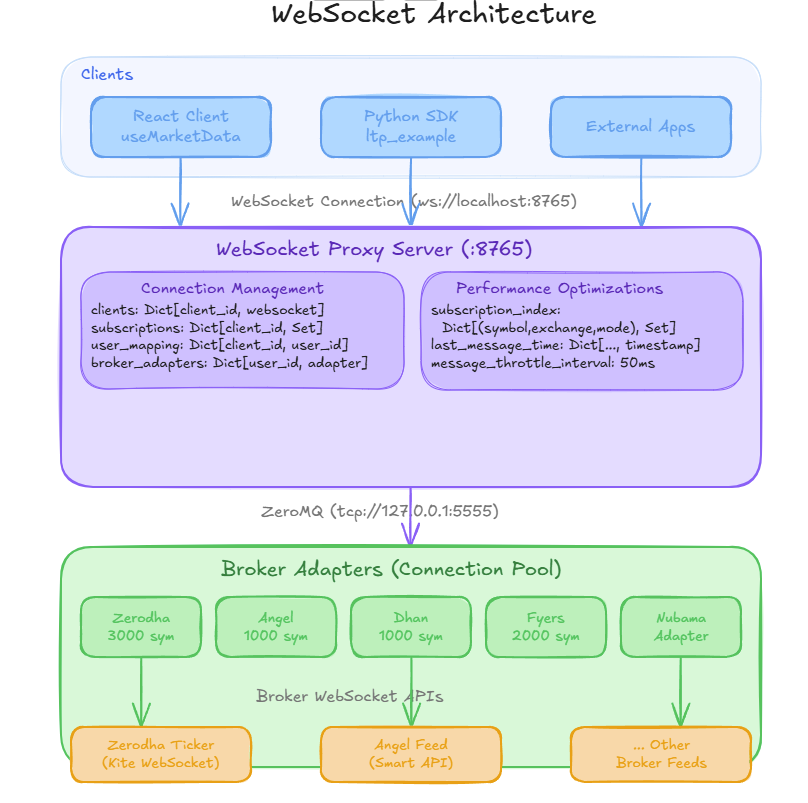

### Architecture Diagram

<figure><img src="/files/lLwxDTq2gmE8eswXOQ3u" alt=""><figcaption></figcaption></figure>

### Core Components

#### 1. WebSocket Proxy Server

**Location:** `websocket_proxy/server.py`

The central component that manages client connections, authentication, and message routing.

```python
class WebSocketProxy:
    """
    WebSocket Proxy Server that handles client connections and authentication,
    manages subscriptions, and routes market data from broker adapters to clients.
    """

    def __init__(self, host: str = "127.0.0.1", port: int = 8765):
        self.host = host
        self.port = port

        # Client management
        self.clients = {}              # client_id -> websocket
        self.subscriptions = {}        # client_id -> set of subscriptions
        self.broker_adapters = {}      # user_id -> broker adapter
        self.user_mapping = {}         # client_id -> user_id
        self.user_broker_mapping = {}  # user_id -> broker_name

        # Performance: Subscription index for O(1) lookup
        self.subscription_index: Dict[Tuple[str, str, int], Set[int]] = defaultdict(set)

        # Performance: Message throttling (50ms minimum)
        self.last_message_time: Dict[Tuple[str, str, int], float] = {}
        self.message_throttle_interval = 0.05

        # ZeroMQ connection
        self.context = zmq.asyncio.Context()
        self.socket = self.context.socket(zmq.SUB)
        self.socket.connect(f"tcp://{ZMQ_HOST}:{ZMQ_PORT}")
        self.socket.setsockopt(zmq.SUBSCRIBE, b"")
```

#### 2. Broker Adapters

**Location:** `websocket_proxy/base_adapter.py`

Abstract base class for broker-specific WebSocket implementations:

```python
class BaseBrokerWebSocketAdapter(ABC):
    """
    Base class for all broker-specific WebSocket adapters that implements
    common functionality and defines the interface.
    """

    # Class variables for port management
    _bound_ports = set()
    _port_lock = threading.Lock()
    _shared_context = None

    def __init__(self, use_shared_zmq: bool = False, shared_publisher=None):
        # Initialize ZeroMQ publisher
        self.socket = self._create_socket()
        self.zmq_port = self._bind_to_available_port()

        # Subscription tracking
        self.subscriptions = {}
        self.connected = False

    @abstractmethod
    def connect(self, auth_token: str, feed_token: str = None):
        """Connect to broker WebSocket"""
        pass

    @abstractmethod
    def subscribe(self, symbols: list, mode: str = "LTP"):
        """Subscribe to symbols"""
        pass

    @abstractmethod
    def unsubscribe(self, symbols: list):
        """Unsubscribe from symbols"""
        pass
```

#### 3. Connection Pooling

**Configuration:**

```python
# Environment variables
MAX_SYMBOLS_PER_WEBSOCKET = int(os.getenv('MAX_SYMBOLS_PER_WEBSOCKET', '1000'))
MAX_WEBSOCKET_CONNECTIONS = int(os.getenv('MAX_WEBSOCKET_CONNECTIONS', '3'))
ENABLE_CONNECTION_POOLING = os.getenv('ENABLE_CONNECTION_POOLING', 'true')

# Total capacity = 1000 × 3 = 3000 symbols per user
```

**Connection Pool Logic:**

```
When subscribing to symbols:
1. Check current connection's symbol count
2. If limit reached, create new connection
3. Route subscription to available connection
4. Max 3 connections × 1000 symbols = 3000 total
```

### Message Flow

#### Client Authentication Flow

```
┌─────────────────────────────────────────────────────────────────┐
│                    Authentication Flow                           │
└─────────────────────────────────────────────────────────────────┘

Client                  WebSocket Proxy               Database
  │                          │                           │
  │  1. Connect ws://        │                           │
  ├─────────────────────────►│                           │
  │                          │                           │
  │  2. Send: {action:       │                           │
  │     "authenticate",      │                           │
  │     api_key: "..."}      │                           │
  ├─────────────────────────►│                           │
  │                          │                           │
  │                          │  3. verify_api_key()      │
  │                          ├──────────────────────────►│
  │                          │                           │
  │                          │  4. Return user_id        │
  │                          │◄──────────────────────────┤
  │                          │                           │
  │                          │  5. Get broker from auth  │
  │                          ├──────────────────────────►│
  │                          │                           │
  │  6. {status: "success",  │◄──────────────────────────┤
  │     message: "Auth OK"}  │                           │
  │◄─────────────────────────┤                           │
  │                          │                           │
```

#### Subscription Flow

```
┌─────────────────────────────────────────────────────────────────┐
│                    Subscription Flow                             │
└─────────────────────────────────────────────────────────────────┘

Client                  WebSocket Proxy            Broker Adapter
  │                          │                          │
  │  1. {action: "subscribe",│                          │
  │     symbols: [{symbol:   │                          │
  │     "SBIN", exchange:    │                          │
  │     "NSE"}], mode: "LTP"}│                          │
  ├─────────────────────────►│                          │
  │                          │                          │
  │                          │  2. Get/create adapter   │
  │                          │     for user's broker    │
  │                          ├─────────────────────────►│
  │                          │                          │
  │                          │  3. Convert to broker    │
  │                          │     symbol format        │
  │                          │─────────────────────────►│
  │                          │                          │
  │                          │  4. Subscribe via        │
  │                          │     broker WebSocket     │
  │                          │                          ├─── Broker API
  │                          │                          │
  │  5. {status: "success"}  │                          │
  │◄─────────────────────────┤                          │
  │                          │                          │
```

#### Data Streaming Flow

```
┌─────────────────────────────────────────────────────────────────┐
│                    Data Streaming Flow                           │
└─────────────────────────────────────────────────────────────────┘

Broker API            Broker Adapter          ZeroMQ             Proxy             Client
    │                      │                    │                  │                  │
    │  1. Market data      │                    │                  │                  │
    ├─────────────────────►│                    │                  │                  │
    │                      │                    │                  │                  │
    │                      │  2. Normalize to   │                  │                  │
    │                      │     OpenAlgo format│                  │                  │
    │                      │                    │                  │                  │
    │                      │  3. Publish        │                  │                  │
    │                      ├───────────────────►│                  │                  │
    │                      │                    │                  │                  │
    │                      │                    │  4. zmq_listener │                  │
    │                      │                    │     receives     │                  │
    │                      │                    ├─────────────────►│                  │
    │                      │                    │                  │                  │
    │                      │                    │                  │  5. Lookup       │
    │                      │                    │                  │  subscribed      │
    │                      │                    │                  │  clients         │
    │                      │                    │                  │                  │
    │                      │                    │                  │  6. Throttle     │
    │                      │                    │                  │  (50ms min)      │
    │                      │                    │                  │                  │
    │                      │                    │                  │  7. Send to      │
    │                      │                    │                  │  clients         │
    │                      │                    │                  ├─────────────────►│
    │                      │                    │                  │                  │
```

### Client Protocol

#### Message Format

**Authentication:**

```json
{
  "action": "authenticate",
  "api_key": "your-api-key"
}
```

**Subscribe:**

```json
{
  "action": "subscribe",
  "symbols": [
    {"symbol": "SBIN", "exchange": "NSE"},
    {"symbol": "RELIANCE", "exchange": "NSE"},
    {"symbol": "NIFTY30JAN25FUT", "exchange": "NFO"}
  ],
  "mode": "LTP"  // LTP, QUOTE, or DEPTH
}
```

**Unsubscribe:**

```json
{
  "action": "unsubscribe",
  "symbols": [
    {"symbol": "SBIN", "exchange": "NSE"}
  ]
}
```

#### Response Format

**Market Data (LTP):**

```json
{
  "symbol": "SBIN",
  "exchange": "NSE",
  "ltp": 625.50,
  "timestamp": "2024-01-15T10:30:00+05:30"
}
```

**Market Data (QUOTE):**

```json
{
  "symbol": "SBIN",
  "exchange": "NSE",
  "ltp": 625.50,
  "open": 620.00,
  "high": 628.00,
  "low": 618.50,
  "close": 622.00,
  "volume": 1500000,
  "timestamp": "2024-01-15T10:30:00+05:30"
}
```

**Market Data (DEPTH):**

```json
{
  "symbol": "SBIN",
  "exchange": "NSE",
  "ltp": 625.50,
  "depth": {
    "buy": [
      {"price": 625.45, "quantity": 1000, "orders": 5},
      {"price": 625.40, "quantity": 2500, "orders": 8}
    ],
    "sell": [
      {"price": 625.50, "quantity": 800, "orders": 3},
      {"price": 625.55, "quantity": 1200, "orders": 4}
    ]
  }
}
```

### Performance Optimizations

#### 1. Subscription Index (O(1) Lookup)

```python
# Instead of nested loops:
# for client_id, subs in subscriptions.items():
#     for sub in subs:
#         if matches(sub, message): ...

# Use pre-computed index:
self.subscription_index: Dict[Tuple[str, str, int], Set[int]] = defaultdict(set)

# Lookup is O(1):
key = (symbol, exchange, mode)
client_ids = self.subscription_index.get(key, set())
```

#### 2. Message Throttling

```python
# Prevent spam by enforcing 50ms minimum between messages
self.message_throttle_interval = 0.05  # 50ms

current_time = time.time()
key = (symbol, exchange, mode)

if key in self.last_message_time:
    elapsed = current_time - self.last_message_time[key]
    if elapsed < self.message_throttle_interval:
        return  # Skip this message

self.last_message_time[key] = current_time
# Send message...
```

#### 3. Mode Mapping Pre-computation

```python
# Pre-compute instead of string comparison each time
self.MODE_MAP = {"LTP": 1, "QUOTE": 2, "DEPTH": 3}
```

### Broker Adapter Structure

Each broker has a dedicated adapter in `broker/{broker_name}/streaming/`:

```
broker/zerodha/streaming/
├── zerodha_adapter.py         # Main adapter class
├── zerodha_websocket.py       # Kite WebSocket client
└── zerodha_mapping.py         # Data normalization

broker/angel/streaming/
├── angel_adapter.py
├── angel_websocket.py
└── angel_mapping.py

broker/nubra/streaming/
├── nubra_adapter.py          # Nubra WebSocket adapter (gRPC-based)
└── nubra_mapping.py          # Data normalization
```

**Adapter Implementation Example:**

```python
class ZerodhaAdapter(BaseBrokerWebSocketAdapter):
    def connect(self, auth_token: str, feed_token: str = None):
        api_key, access_token = auth_token.split(':')
        self.kite_ws = KiteTicker(api_key, access_token)
        self.kite_ws.on_ticks = self._on_ticks
        self.kite_ws.connect()

    def subscribe(self, symbols: list, mode: str = "LTP"):
        tokens = [self._get_token(sym) for sym in symbols]
        kite_mode = self._map_mode(mode)
        self.kite_ws.subscribe(tokens)
        self.kite_ws.set_mode(kite_mode, tokens)

    def _on_ticks(self, ws, ticks):
        for tick in ticks:
            normalized = self._normalize_tick(tick)
            self._publish_to_zmq(normalized)
```

### Configuration

#### Environment Variables

```bash
# WebSocket Server
WEBSOCKET_HOST=127.0.0.1
WEBSOCKET_PORT=8765

# ZeroMQ
ZMQ_HOST=127.0.0.1
ZMQ_PORT=5555

# Connection Pool
MAX_SYMBOLS_PER_WEBSOCKET=1000
MAX_WEBSOCKET_CONNECTIONS=3
ENABLE_CONNECTION_POOLING=true
```

#### Symbol Limits by Broker

| Broker  | Max Symbols/Connection | Default Pool Size | Depth Levels |
| ------- | ---------------------- | ----------------- | ------------ |
| Zerodha | 3000                   | 1                 | 5            |
| Angel   | 1000                   | 3                 | 5            |
| Dhan    | 1000                   | 3                 | 20           |
| Fyers   | 2000                   | 2                 | 5            |
| Nubra   | 1000                   | 3                 | 5            |
| Others  | 1000                   | 3                 | 5            |

**Note:** Only Dhan supports 20-level market depth. All other brokers provide 5-level depth. The frontend provides depth level routes at `/websocket/test/20`, `/websocket/test/30`, and `/websocket/test/50` for testing different depth configurations.

### Frontend Integration

#### React Hook (useMarketData)

```typescript
// hooks/useMarketData.ts
export function useMarketData(symbols: string[], mode: 'ltp' | 'quote' | 'depth') {
  const [prices, setPrices] = useState<Record<string, MarketData>>({})
  const wsRef = useRef<WebSocket | null>(null)

  useEffect(() => {
    // Get WebSocket config
    const config = await fetch('/api/websocket/config')
    const apiKey = await fetch('/api/websocket/apikey')

    // Connect
    wsRef.current = new WebSocket(config.url)

    wsRef.current.onopen = () => {
      // Authenticate
      wsRef.current.send(JSON.stringify({
        action: 'authenticate',
        api_key: apiKey
      }))
    }

    wsRef.current.onmessage = (event) => {
      const data = JSON.parse(event.data)
      if (data.status === 'authenticated') {
        // Subscribe to symbols
        wsRef.current.send(JSON.stringify({
          action: 'subscribe',
          symbols,
          mode
        }))
      } else if (data.ltp) {
        setPrices(prev => ({...prev, [data.symbol]: data}))
      }
    }

    return () => wsRef.current?.close()
  }, [symbols, mode])

  return prices
}
```

### websocket\_proxy/ Directory Structure

```
websocket_proxy/
├── server.py              # WebSocketProxy class - main server
├── base_adapter.py        # BaseBrokerWebSocketAdapter ABC
├── broker_factory.py      # Creates broker-specific adapters
├── connection_manager.py  # Connection pool management
├── mapping.py             # Symbol mapping utilities
├── port_check.py          # Port availability checking
└── app_integration.py     # Flask app integration
```

#### App Integration (app\_integration.py)

The WebSocket server runs as a **daemon thread** inside the main Flask application:

```python
# Called from app.py on startup
start_websocket_proxy(app)

# Lifecycle:
# 1. Check if should start (skip in Flask debug parent process)
# 2. Start WebSocket server in daemon thread
# 3. Register cleanup handlers for SIGINT/SIGTERM
# 4. WebSocket runs on port 8765 alongside Flask on port 5000
```

**Key Points:**

* No separate service needed - WebSocket runs inside main process
* Single worker (`-w 1`) required for Gunicorn
* Thread automatically cleans up on application shutdown
* ZeroMQ context shared for message routing

### Key Files Reference

| File                                    | Purpose                                   |
| --------------------------------------- | ----------------------------------------- |
| `websocket_proxy/server.py`             | Main WebSocket proxy server (port 8765)   |
| `websocket_proxy/base_adapter.py`       | Base class for broker adapters            |
| `websocket_proxy/broker_factory.py`     | Creates broker-specific adapters          |
| `websocket_proxy/connection_manager.py` | Connection pool management                |
| `websocket_proxy/app_integration.py`    | Flask app integration (thread management) |
| `broker/*/streaming/*_adapter.py`       | Broker-specific implementations           |
| `frontend/src/hooks/useMarketData.ts`   | React WebSocket hook                      |


---

# Agent Instructions: Querying This Documentation

If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://docs.openalgo.in/developers/design-documentation/authentication-platforms.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
