# Amazon Elastic Beanstalk

## Hosting OpenAlgo in the Cloud using Amazon AWS Elastic Beanstalk

\
[OpenAlgo](https://openalgo.in/) is an open-source algo trading platform, offering a wide range of features for both beginners and experienced traders. This tutorial guides you through the process of hosting OpenAlgo in the cloud using Amazon AWS Elastic Beanstalk.

**Prerequisites:**

* An Amazon AWS account
* VS Code (or any code editor with Git installed)
* A hosting account with DNS management and custom domain(Cloudflare is recommended)

{% embed url="<https://www.youtube.com/watch?v=MWOuMUzWGgI>" %}

**Steps by Step Instruction to host OpenAlgo in Amazon Cloud with custom domain**

**Clone the OpenAlgo Repository:**

* Go to the [OpenAlgo GitHub repository](https://github.com/marketcalls/openalgo).
* Copy the repository link.
* Open your VS Code and navigate to your project folder.
* Open a new terminal in VS Code and type **git clone** [**https://github.com/marketcalls/openalgo**](https://github.com/marketcalls/openalgo) and press enter.
* This will download the OpenAlgo application locally in your VS Code.

**Configure the .env File**

* Open the sample.env file in the OpenAlgo project.
* Right-click and rename it to .env.
* Update the REDIRECT\_URL to your custom domain.
* For example, if your custom domain for angel trading account is opendash.app, update it to <https://opendash.app/angel/callback>.
* If you’re not using HTTPS, use <http://openalgo.app/angel/callback>.
* Make sure to update the HOST\_SERVER to your custom domain as well as shown in the video.
* You might also want to update the BROKER\_API\_KEY and BROKER\_API\_SECRET according to your broker credentials.
* Save the changes.

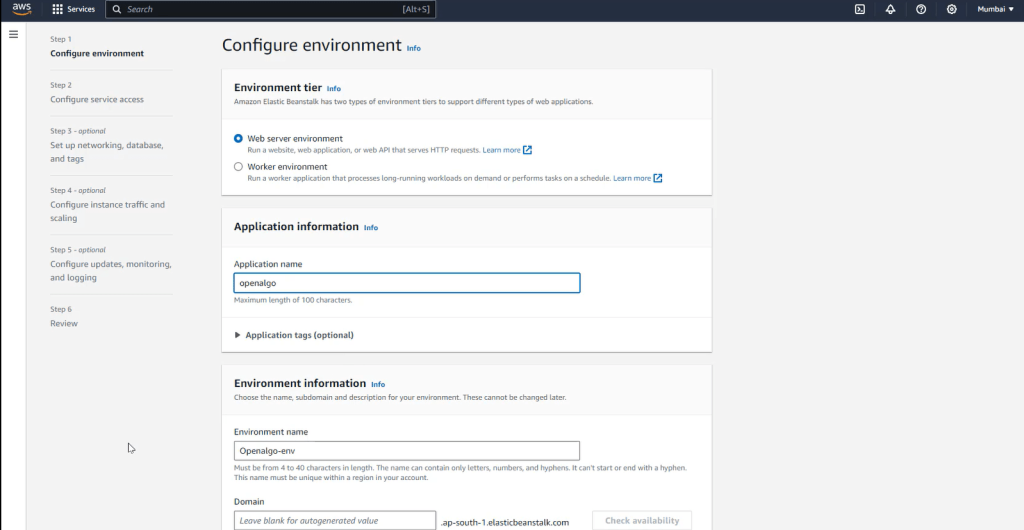

**Create the Elastic Beanstalk Application**

* Go to the [AWS Management Console](https://aws.amazon.com/) and sign in.
* Select the desired region (e.g., Asia Pacific (Mumbai) ap-south-1).
* Search for “Elastic Beanstalk”.
* Click on “Create application”.
* Provide an application name (e.g., openalgo) and an environment name (e.g., openalgo-env).
* Ensure the domain name is available (e.g., openalgo.ap-south-1.elasticbeanstalk.com).
* Provide a description for your environment (optional).
* Select “Python” as the platform and choose the “Python 3.11” platform branch.
* Select “4.1.0 (Recommended)” as the platform version.
* For “Application code”, choose “Upload your code”.
* Give a version label (e.g., 1.0.0.1).
* Choose “Local file” for “Source code origin”.
* Select the zipped OpenAlgo project file you created earlier.
* Choose “Single instance (free tier eligible)” as the configuration preset (or choose “Custom configuration” for more options).
* Click on “Next” to proceed.

<figure><img src="https://17901342-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmBwEhITzgv0O0fEGIIRN%2Fuploads%2FNdhF417PVzLfFLNrWWiA%2Fimage.png?alt=media&#x26;token=fd4b2078-f193-41e3-a112-9042502be4a7" alt=""><figcaption></figcaption></figure>

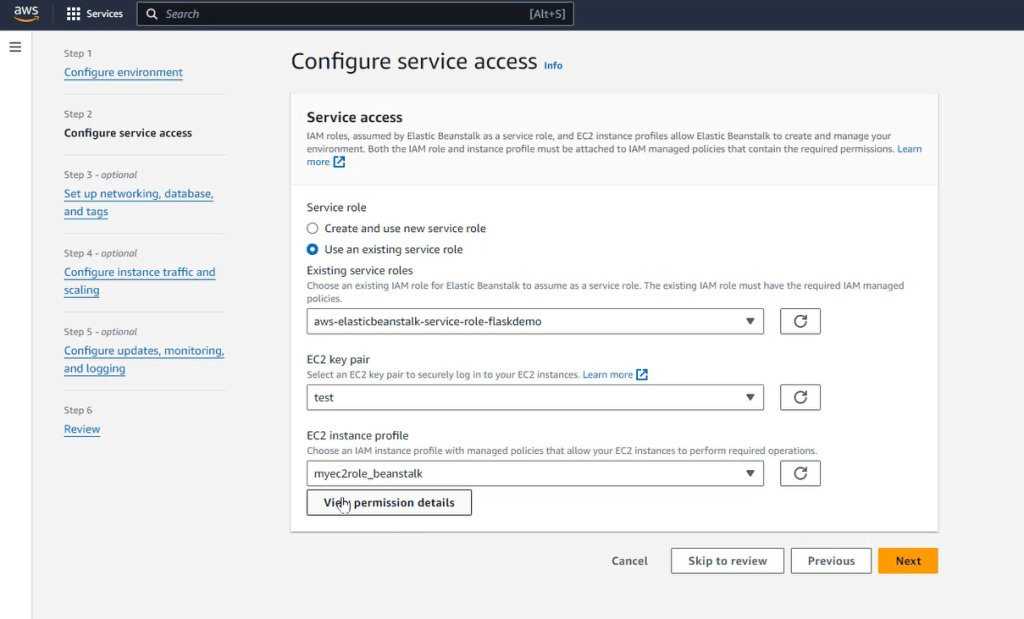

**Configure Service Access:**

* Select the existing service role you created earlier.
* If you don’t have one, click on “Create and use new service role”.
* Select your EC2 key pair (e.g., test).
* If you don’t have an EC2 key pair, click on “Choose an EC2 key pair” and create a new one.
* Select the existing EC2 instance profile (e.g., “aws-elasticbeanstalk-ec2-role-flaskenv”).
* If you don’t have one, click on “View permission details” and create a new instance profile.
* Click on “Next”.

<figure><img src="https://17901342-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmBwEhITzgv0O0fEGIIRN%2Fuploads%2FSGNr4vPZmStLqQuWBlO0%2Fimage.png?alt=media&#x26;token=7f28af87-bb71-4ccf-a970-d7ab33d2d7e2" alt=""><figcaption></figcaption></figure>

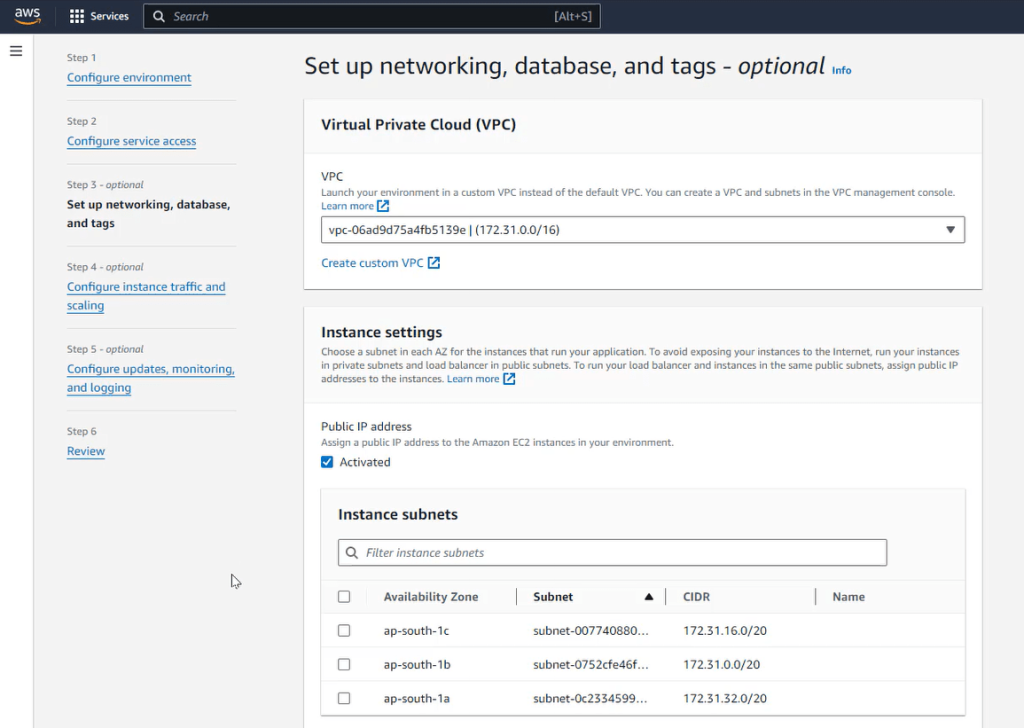

**Configure VPC Settings**

* Select the default VPC. You can create a new VPC, if needed.
* This is the virtual network where your Elastic Beanstalk environment will be deployed.

**Activate Public IP Address and Instance Subnet:**

* Ensure the Public IP address is enabled for your instance. This allows your application to be accessible from the internet.
* Choose an instance subnet from your VPC.

<figure><img src="https://17901342-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmBwEhITzgv0O0fEGIIRN%2Fuploads%2Fare2GJssCn5u3SvrAf4h%2Fimage.png?alt=media&#x26;token=83b72e54-43a7-4d1c-90d4-5befbf9b4cfd" alt=""><figcaption></figcaption></figure>

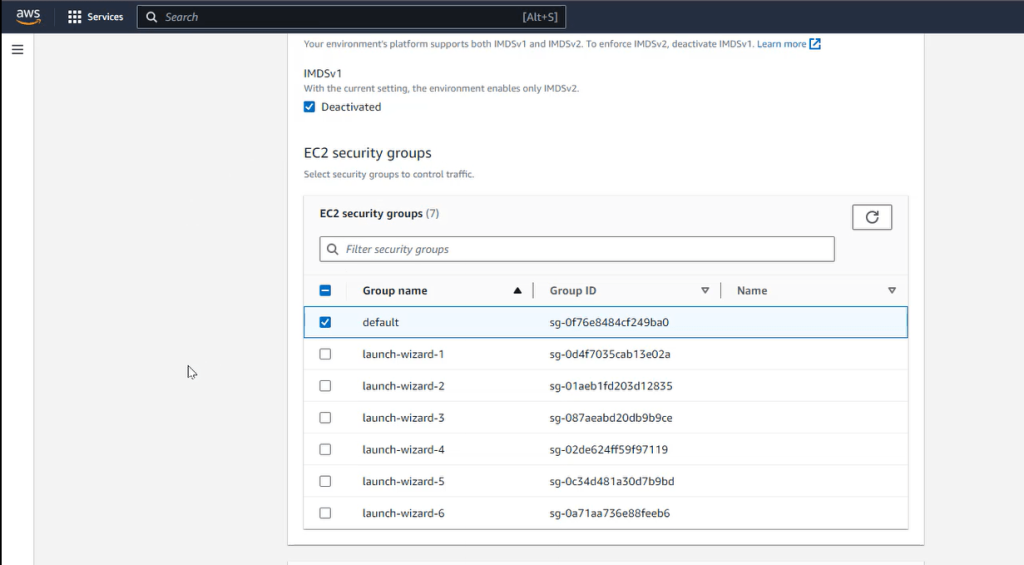

**Configure Security Group:**

* By default, select the default security group.
* This will allow your application to connect to the internet.
* If you want to restrict access, you can create a new security group and add rules to control incoming and outgoing traffic.
* Click on “Next”.

<figure><img src="https://17901342-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmBwEhITzgv0O0fEGIIRN%2Fuploads%2FDADJzwvj3HN3v7DgG6B0%2Fimage.png?alt=media&#x26;token=8cb33e20-153b-4661-81ef-33d3da132a27" alt=""><figcaption></figcaption></figure>

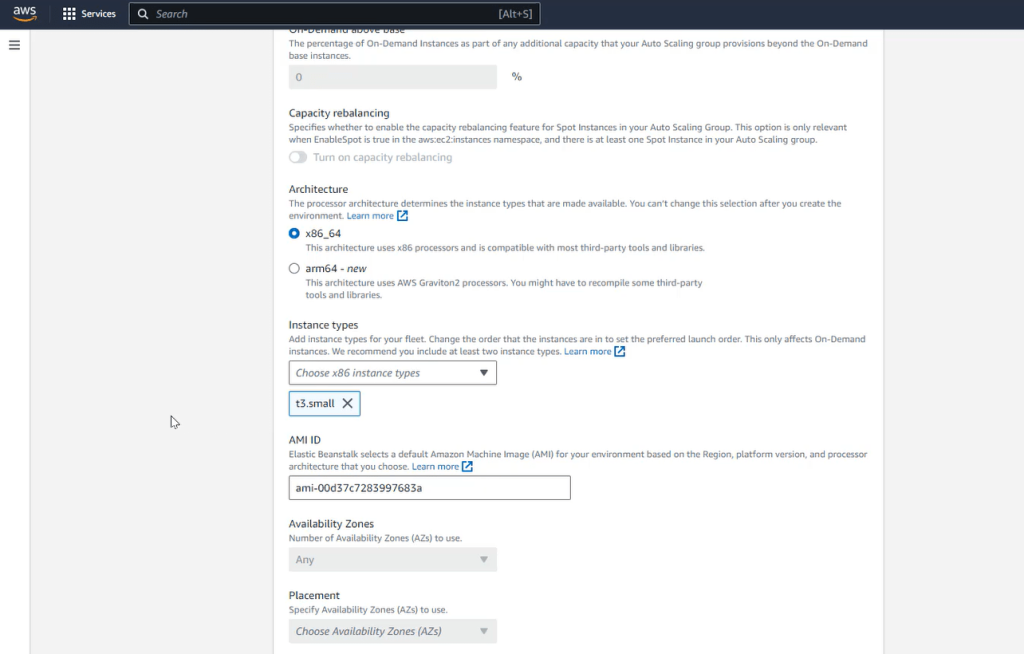

**Configure Instance Type, Load Balancer, and CloudWatch Logs:**

* Choose an instance type (e.g., T3 micro, T3 Small).
* If you are looking for a free tier option, use T3 micro.
* Select “Single instance” if you don’t need a load balancer.
* Choose “Enhanced” for health reporting (optional).
* Choose the default settings for CloudWatch logs (optional).
* Click on “Next”.

<figure><img src="https://17901342-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmBwEhITzgv0O0fEGIIRN%2Fuploads%2F8m6EcTdF2UvAvkRzxTv7%2Fimage.png?alt=media&#x26;token=52078497-716f-4c32-9056-c10cf7e9b688" alt=""><figcaption></figcaption></figure>

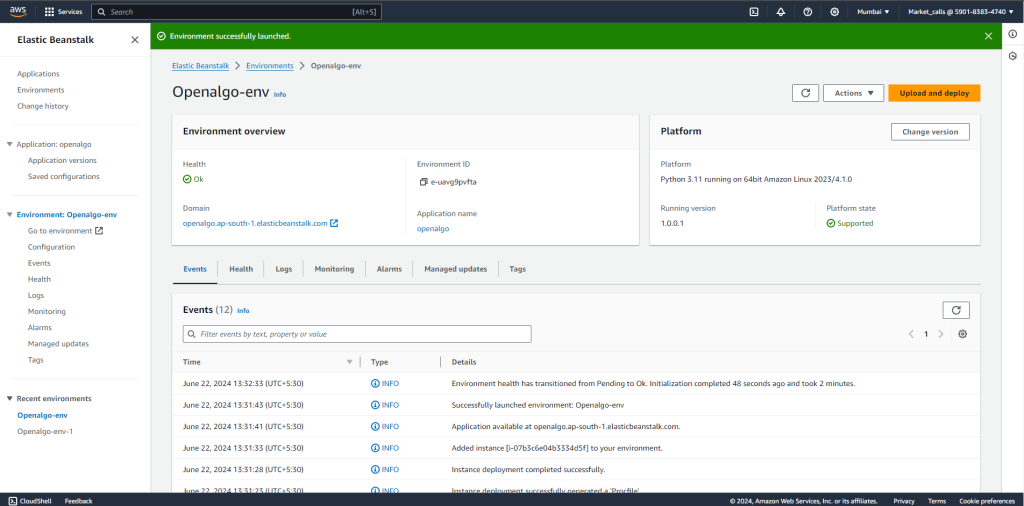

**Review and Submit:**

* Review all the configuration steps.
* Make sure all the settings are correct.
* Click on “Submit”.
* This will initiate the automated provisioning of the servers in the backend.

<figure><img src="https://17901342-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FmBwEhITzgv0O0fEGIIRN%2Fuploads%2F1797lx2wk4HGOb7CT6fv%2Fimage.png?alt=media&#x26;token=a294e169-faca-4274-bf87-c9fed3ec052d" alt=""><figcaption></figcaption></figure>

After deploying your OpenAlgo application on Elastic Beanstalk, you need to configure your custom domain to point to the Elastic Beanstalk environment. This involves creating a CNAME record in your DNS settings. Here’s how to do it:

**Access Your DNS Provider:**

* Log in to your DNS provider (e.g., Cloudflare, GoDaddy, Namecheap, etc.)
* Find your domain’s DNS management section.

**Create a CNAME Record:**

* Click on “Add record” or similar to create a new record.
* **Name:** Enter the subdomain you want to use (e.g., trade). This will be the part of your custom domain that will point to your Elastic Beanstalk application (e.g., trade.openalgo.app).
* **Type:** Select “CNAME”.
* **Value:** Copy the Elastic Beanstalk domain generated by AWS. It will look something like this: openalgo.ap-south-1.elasticbeanstalk.com.

**Save and Verify:**

* Save the CNAME record you just created.
* Wait for the DNS propagation to complete, which may take some time (usually 24-48 hours).
* Test your custom domain by entering it into your web browser. You should be redirected to your OpenAlgo application on Elastic Beanstalk.

<figure><img src="https://i0.wp.com/www.marketcalls.in/wp-content/uploads/2024/06/image-17-1024x466.png?resize=1024%2C466&#x26;ssl=1" alt="" height="466" width="1024"><figcaption></figcaption></figure>

**Example:**

* Let’s say your custom domain is openalgo.app.
* You want to use the subdomain trade to access your OpenAlgo application.
* In your DNS settings, create a CNAME record with the following:
  * **Name:** trade
  * **Type:** CNAME
  * **Value:** openalgo.ap-south-1.elasticbeanstalk.com (replace with your Elastic Beanstalk domain)

Once the DNS propagation completes, you’ll be able to access your OpenAlgo application at trade.openalgo.app.

**SSL Configuration in Cloudflare**

If you are using Cloudflare for DNS Management ensure to enable the flexible mode to access the openalgo domain with https SSL certificate.

<figure><img src="https://i0.wp.com/www.marketcalls.in/wp-content/uploads/2024/06/image-18-1024x524.png?resize=1024%2C524&#x26;ssl=1" alt="" height="524" width="1024"><figcaption></figcaption></figure>

By following these steps, you can successfully deploy OpenAlgo in the cloud using Amazon AWS Elastic Beanstalk. You can then start configuring your trading strategies and begin your algorithmic trading journey.
